Advance Modular Compact PSA Oxygen Generator

Experience the Future of Oxygen Generation - Say Goodbye to Costly Oxygen Cylinders and Embrace Savings with Peace of Mind!

Product

Features

Uncover the Remarkable Capabilities of the OXSYS System

Economical

Running cost way less than an oxygen plant, as well as oxygen cylinders

Economical

Dependable

if one unit fails the equipment doesn't stop

Dependable

Customer Support

we provide the best after sales service in the market

Customer Support

Inhouse oxygen generation

reduce dependency on oxygen cylinders

Inhouse oxygen generation

Nonstop Function

works 24 hours a day 365 day a year

Nonstop Function

Lesser Running Cost

works 24 hours a day 365 day a year

Lesser Running Cost

Testimonials

Discover What People are Saying About Our Oxygen Generation Solutions

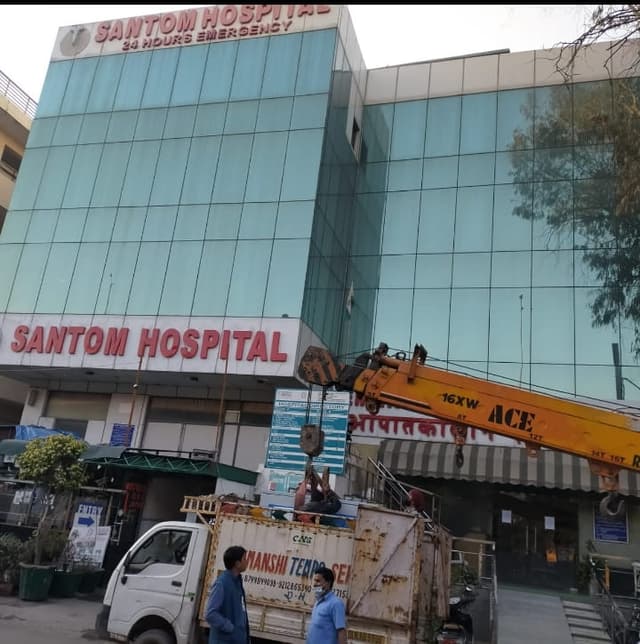

Thanks to OXSYS, we were using about 40 micro liquid medical oxygen cylinders per month, but after installation of OXSYS 1200S it has reduced to 3 to 8 cylinders per month.

Dr. Sushma Malik

Santom Hospital Pvt.Ltd, Rohini

The Oxygen generator has helped us to save our expense considerably, I recommend highly.

Dr. D P Singh, Director

Aryan Hospital Gorakhpur

The generator has helped us saving with convenience, I strongly recommend to hospital owners to experience this product and get benefits.

Dr. Pankaj Sirohi, Director

Medwin Hospital, Meerut

Products

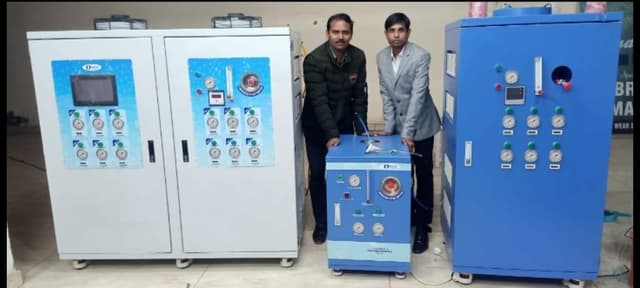

Our line of OXSYS Generators we offer

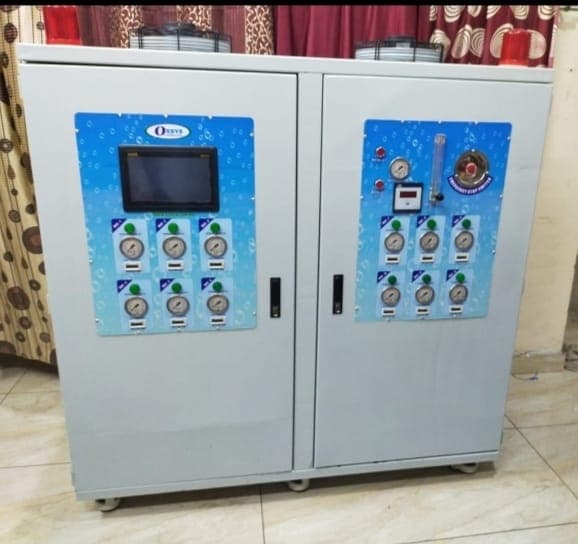

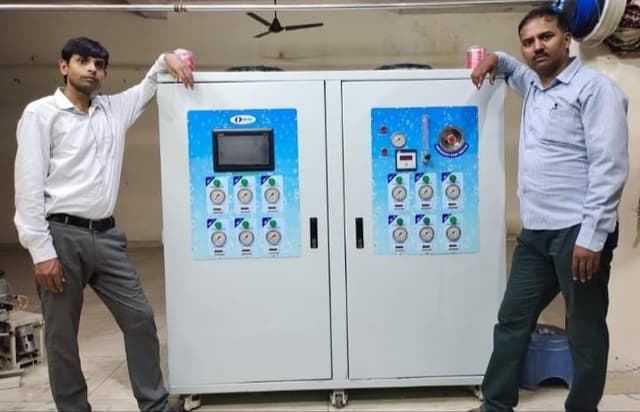

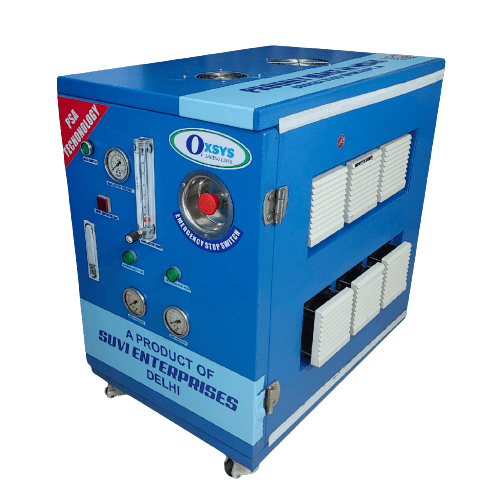

OXSYS 1200S

Specification

Oxygen Purity: 93 ± 3%

Output Flow Rate: 120 LPM

Outlet Pressure Range: 4 bar to 6 bar

Operating Temperature: 10°C to 52°C

Input Voltage: 220-240v ac/50hz

Max Power: 9kw/h

Weight App.: 560kg

Size mm: 1660(L)*805(w)*1460(h)*

A single unit OXSYS 1200S generates 120 x 60 x 24 = 1,72,000 litres of oxygen per day.

This is equal to usable oxygen of 30 D-type cylinders.

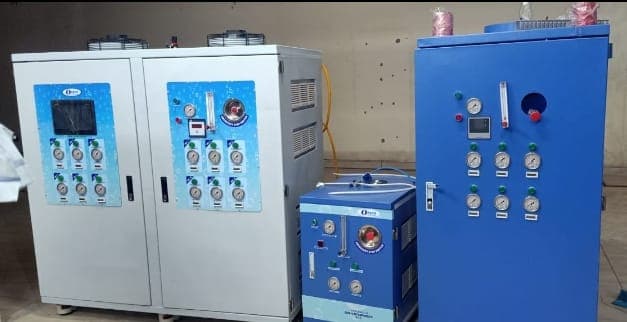

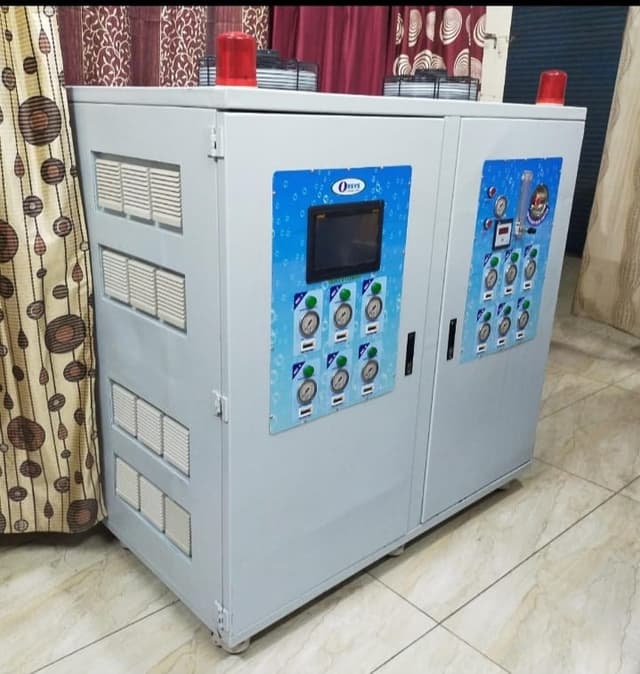

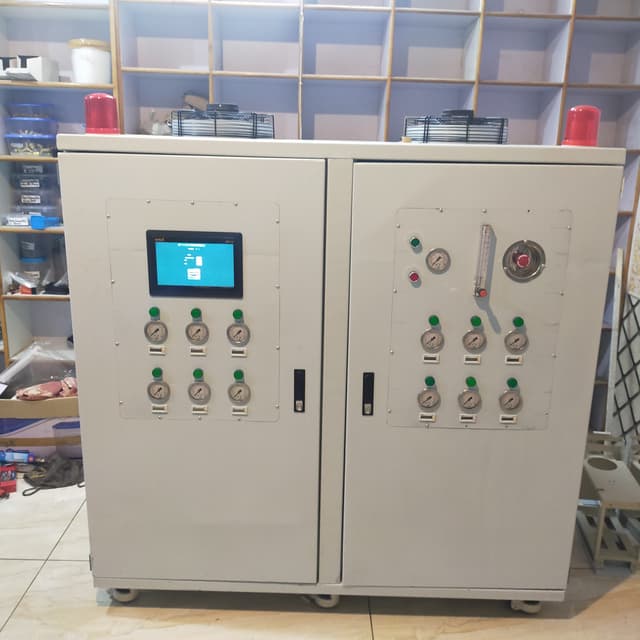

Product Image
Product Image
Product Image

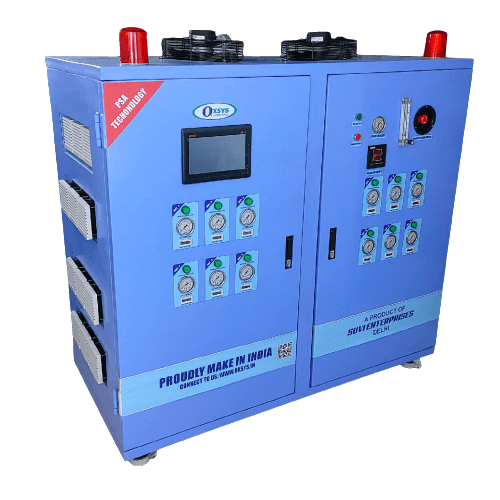

OXSYS 1200S

Project Banner

Specification

Oxygen Purity : 93 ± 3%

Output Flow Rate : 120 LPM

Outlet Pressure Range : 4 bar to 6 bar

Operating Temperature : 10°C to 52°C

Input Voltage : 220-240v ac/50hz

Max Power : 9kw/h

Weight App. : 560kg

Size mm : 1660(L)*805(w)*1460(h)*

A single unit OXSYS 1200S generates 120 x 60 x 24 = 1,72,000 litres of oxygen per day.

this is equal to usable oxygen of 30 D-type cylinders

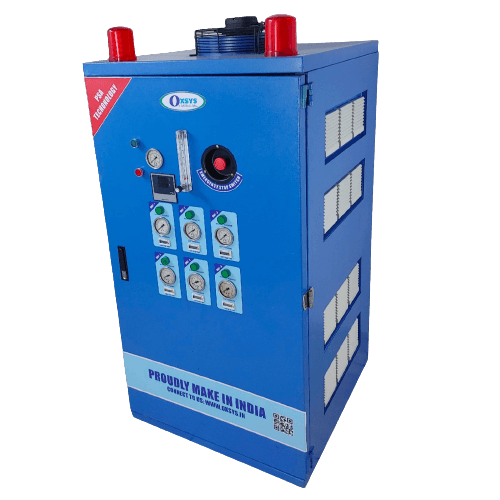

OXSYS 600S

Project Banner

Specification

Oxygen Purity : 93 ± 3%

Output Flow Rate : 60 LPM

Outlet Pressure Range : 4 bar to 6 bar

Operating Temperature : 10°C to 45°C / 30% to 85% Rh

Input Voltage : 220-240v ac/50hz

Max Power : 4.5kw/h

Weight App. : 270kg

Size mm : 780(L) * 800(w) * 1455(h) *

A single unit OXSYS 600S generates 60 x 60 x 24 = 86,000 litres of oxygen per day.

this is equal to usable oxygen of 15 D-type cylinders

OXSYS 200S

Project Banner

Specification

Oxygen Purity : 93 ± 3%

Output Flow Rate : 20 LPM

Outlet Pressure Range : 4 bar to 6 bar

Operating Temperature : 10°C to 52°C

Input Voltage : 220-240v AC/50hz

Max Power : 2kw/h

Weight App. : 80kg

Size mm : 1660(L)*805(w)*1460(h)*

A single unit OXSYS 200S generates 20 x 60 x 24 = 28,800 litres of oxygen per day.

this is equal to usable oxygen of 5 D-type cylinders

Comparison with Oxygen Plant

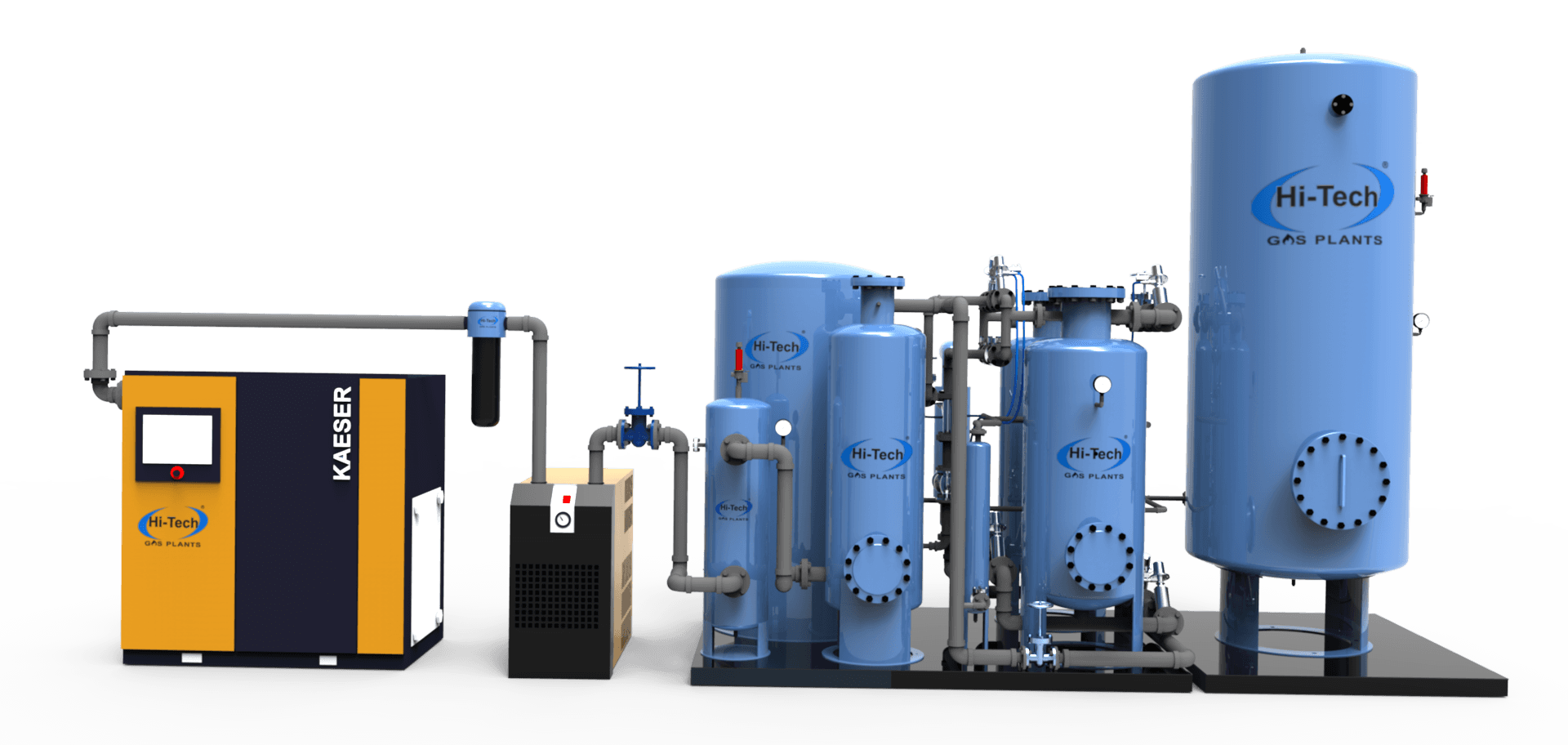

Conventional PSA Plant

PSA Plant

Functionality - Linear ( output is dependent on each part)

PSA Unit - Single

Power Consumption - High

Operating Pressure - High ( 8-10 bar)

Breakdown Percentage - 100%

Output Pressure - Fix(4 to 4.5 bar)

Air Dryer- Required

Compresser - Oil Lubricated

Portability- Not Possible ( Fixed)

Advance Modular Compact PSA Oxygen Generator

Advance Modular Compact PSA Oxygen Generator

Functionality - Parallel (Output is independent of every part)

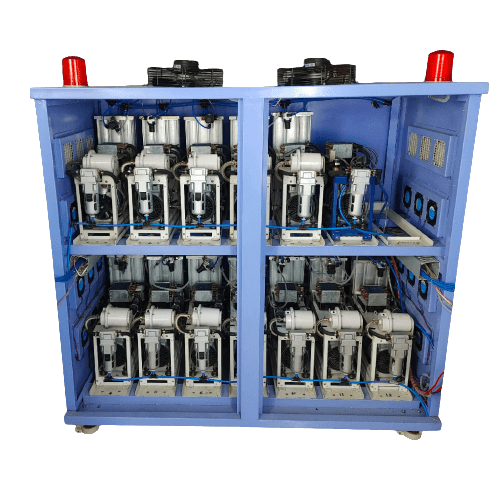

PSA Unit - Multiple (5 to 14)

Power consumption - Low (50% of equivalent PSA Plant)

Operating Pressure - Very Low(2 bar)

Breakdown Percentage - Upto 30% Max

Output Pressure - Could be altered (4 to 7.5 bar)

Air Dryer- Not Required

Compresser - Oil Free

Portability- Possible ( on caster wheels)

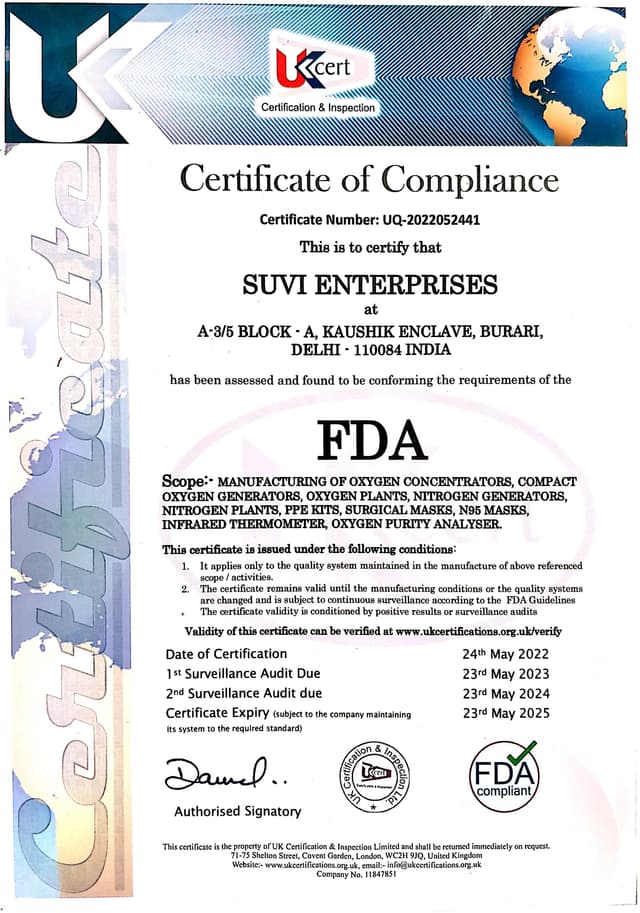

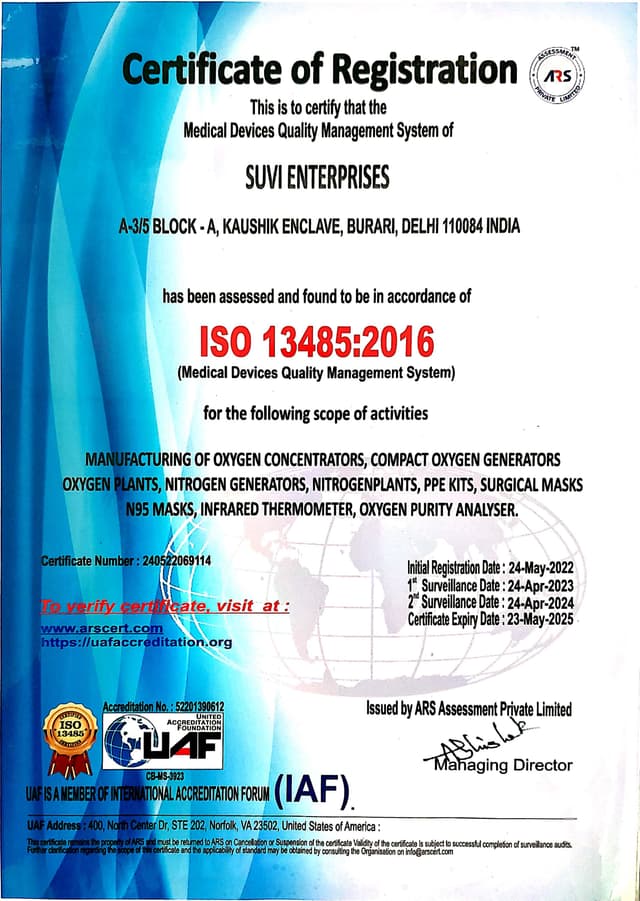

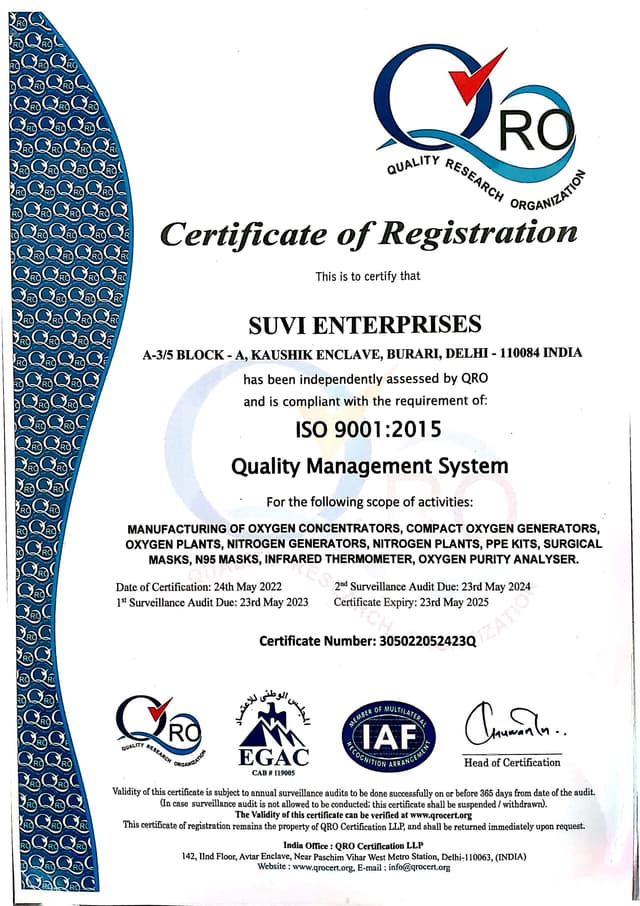

Certifications

We are endorsed by India's top certifications.

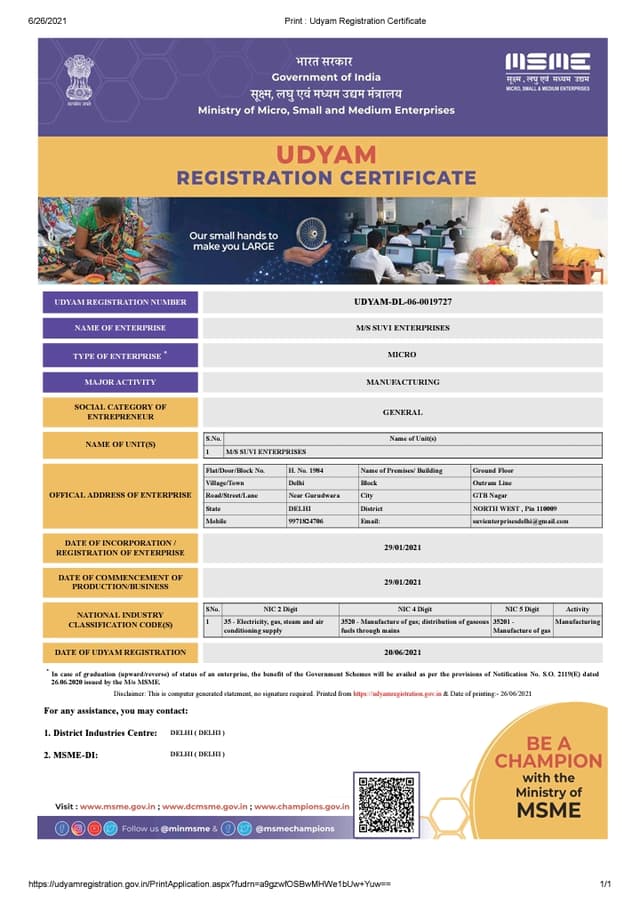

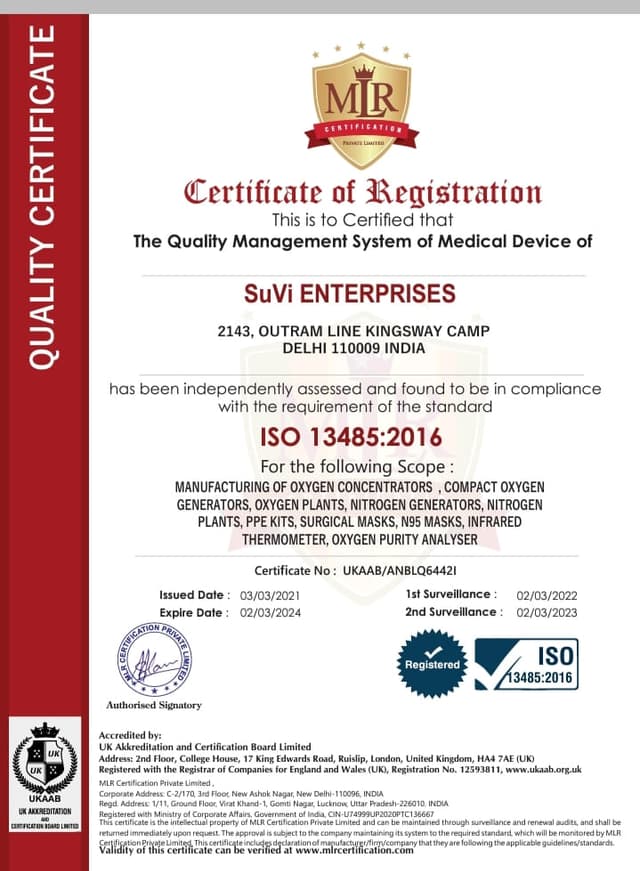

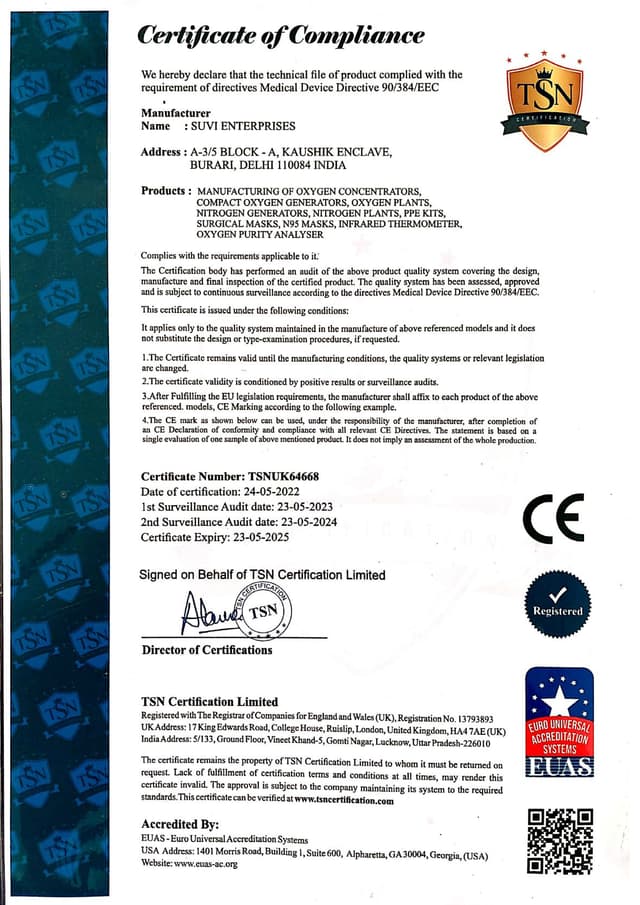

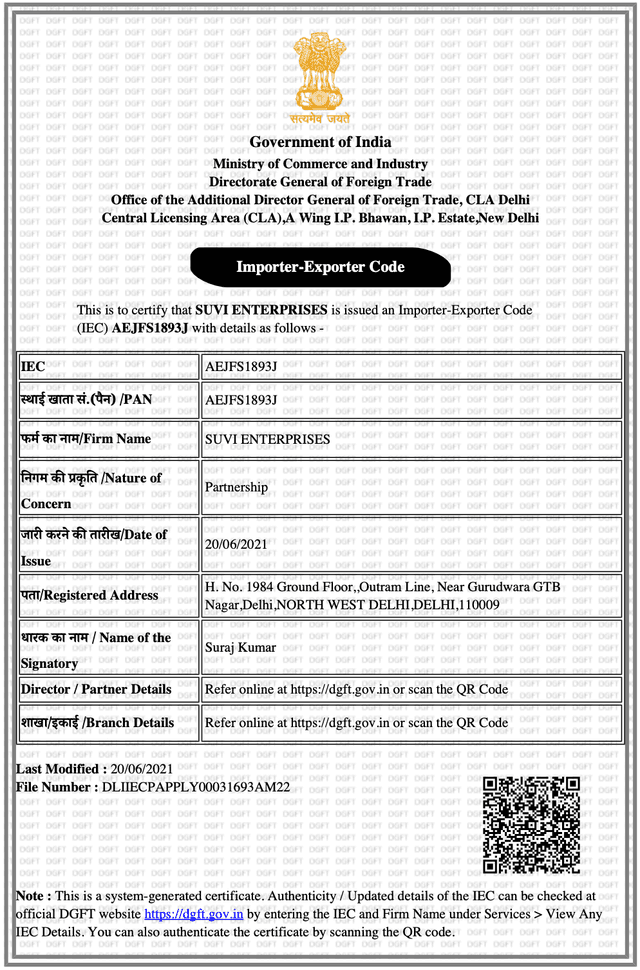

Import Export CertificateUdyamCertificate of RegistrationISO 2015ISO 2016Certificate of Compliance FDACertificate of Compliance TSN

FAQs

Frequently Asked Questions

1.How does the OXSYS oxygen generator work?

The OXSYS oxygen generator utilizes Pressure Swing Adsorption (PSA) technology. Ambient air is drawn into the system and passed through a bed of adsorbent material, which selectively removes nitrogen and other impurities, leaving behind a stream of high-purity oxygen. This oxygen is then stored and made available for various applications.

2. How much saving is insured by the largest model of OXSYS?

Annually, potential savings of at least 25 Lakh INR can be achieved by considering an assumed oxygen cylinder (D-type, 47.6 liters) refill rate of INR 300 per cylinder.

3. Does the system come with a warranty?

Yes, OXSYS generators are typically covered by a comprehensive warranty to ensure customers' peace of mind. The specific terms and conditions of the warranty may vary based on the model and region.
